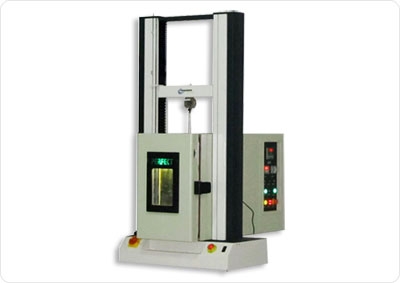

- Tension test machine of PT-1167HXX oven type computer servo system
Test machine for the use of the test machine of the oven type: PT-1167HXX oven type computer servo system for the company's new material testing machine, this machine uses the latest design concepts and manufacturing technology, integrated precision oven and tensile testing machine, which is specially designed to simulate various materials in different conditions. The machine is simple and easy to operate, and can perform GB, ISO, ASTM, BS, DIN, JIS and other national or international standards for testing, for each factory enterprise, technical supervision departments, commodity inspection agencies, research institutes and universities and other departments of the ideal test and research equipment.
The characteristics of tension test machine for the computer servo system of oven type:
Base with elegant appearance design, 1 dynamic type by advanced spray treatment of aluminum alloy column;
2 precision transmission mechanism --- the use of high precision, no clearance ball screw timing belt as the guarantee of the accuracy of the transmission system;
3 advanced control mode --- all computer data acquisition and motion control, powerful and easy to operate;
4 powerful software features XP ---Windows operating system under the full open test software, users can use the existing software to complete almost all of the mechanical test items, but also according to their actual needs to edit the test method. Test results can be shared with the vast majority of automated office software such as Office;
5. Super high test precision, better than 0.5 class force measuring accuracy, the force of 100000 value resolution, the deformation measurement resolution is 0.01mm; Technical specification:
Model
PT-1167HXX
Capacity selection
200、500 、1000、2000 kg Optional one
Temperature control range
Normal temperature ~200 (with visible window, lighting lamp)
Control mode
P.I.D. Automatic temperature calculation
Distribution accuracy
±1%(1℃) at- room100℃
Measurement and control software
All open test software under the Windows platform
Accuracy of measurement
Better than ±0.5%
Force resolution
1/100,000
Deformation measurement resolution
0.01mm
Effective range of measurement
0.5~100%F.S
Deformation display accuracy
Better than ±0.5%
Test speed range
0.5～1000mm/min，Can be arbitrarily set
Test maximum stroke
Maximum 450mm，No jig
Effective test space
Left and right distance 220mm、Distance 350mm
Unit switch
A variety of measurement units, including international units, users can also customize the required units
Stop mode
Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure
Special function
The test method can be used to hold the tension, hold pressure, fatigue, bending resistance, bending resistance and shear test.
Standard configuration
Standard fixture 1 pay, pulling machine elements 1, 1 sets of software and data lines, power supply line 1, CD disc operating instructions 1, 1 copies of product certification, product warranty card 1
External dimensions(W×D×H)cm
Tension machine size：76×45×154、Oven size：105×45×60、Element size：80×60×71、Post assembly dimensions 80×105×225
Machine weight
about 280kg
Power
AC servo motor
Power Supply
1PH，AC220V，50/60Hz，15A Or specify
