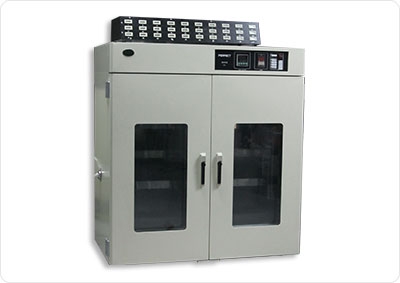

» PT-6012-30 oven holding force (30 groups)
- Purpose: PT-6012 oven type tape keep the force testing machine products for adhesive. Focus on the static load test, under certain load and temperature automatic timing belt to keep time, to confirm the ageing of adhesive tape. Cut a inch wide strip of tape posted on the provisions of the SUS#304 stainless steel plate, the 2kg standard roller to 300mm per minute speed and rolling pressure three times, the steel plate is hung on the testing machine, plus the specified weights, when tape since the plate after the fall, the timer automatically retain test to evalsuation tape adhesion of persistence.
Technical specification:
Model
PT-6012-10
PT-6012-20
PT-6012-30
Temperature control range
Normal atmospheric temperature~200℃
Control mode
Microcomputer P.I.D. automatic temperature control calculation
Temperature display accuracy
0.1℃
Temperature control precision
±0.3 ℃
Distribution accuracy
±1%(1℃) at- room100℃
Test fixture
Farmar 1kg 10,Connector 10 (SUS#304),Keep force plate 10
Farmar 1kg 20,Connector 20 (SUS#304),Keep force plate 20
Farmar 1kg 30,Connector 30 (SUS#304),Keep force plate 30
Time function
Automatic retention time, PLC touch time function, a total of 10 groups
Automatic retention time, PLC touch time function, a total of 20 groups
Automatic retention time, PLC touch time function, a total of 30 groups
Safeguard
EGO over temperature power down / safety overload switch / try all drop off heat
Manufacturing material
Internal SUS#304 stainless steel plate, external senior paint
Machine size（W×D×H）
About 58×18×38cm
About 65×25×38cm
About 70×30×42cm
Machine weight
About 90 kg
About 110KG
About 130KG
Power Supply
1PH，AC220V，50/60Hz，12A
1PH，AC220V，
50/60Hz，12A
1PH，AC220V，50/60Hz，12A
