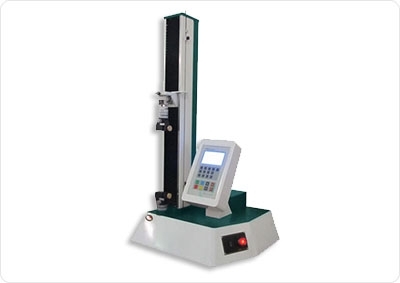

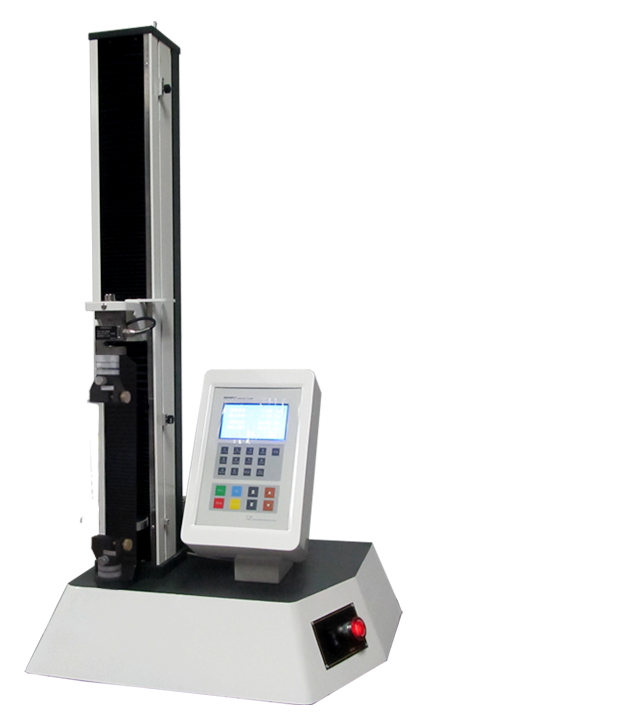

» 1176S double controlled tension test machine
- Dual display double control type pull pressure test machine uses: significant double double control type pull pressure testing machine used in aerospace, petrochemical, machinery manufacturing, metal materials and products, wire and cable, rubber plastic, paper products and packaging and color printing, adhesive tape, cases, handbags, textile, food, pharmaceutical and other industries. Can the physical properties of the test all kinds of materials and finished products, semi-finished products, to buy all the different fixture do tensile, compressive strength, to pull, pressure, bending, tear, peel, adhesive force and the shear test. GB, ASTM, ISO, BS, DIN, JIS and other national or international standards for testing, for each factory enterprise, technical supervision departments, commodity inspection agencies, research institutes and tertiary institutions and other departments of the ideal test and research equipment.
Double - Double - controlled tension test machine features: Dual - Dual - controlled tension testing machine for the company 's new design of high performance - tension test machine. The machine is compact in structure, simple in operation, complete with Gellar, pressure, bending, folding, cutting and other functions, and can achieve the holding of tension, holding pressure and other high difficulty testing.
1. The machine structure with the senior paint treatment of aluminum extrusion sealing board built-in high precision, low resistance, gapless double rolling line screw and a guide post, improve the load efficiency and structure rigidity;
2 control system adopts Panasonic digital AC server to control the high response frequency of AC servo motor, ensure that the transmission system is efficient, stable transmission, low noise, speed and accuracy can be controlled within 0.2%;
3 computer system uses the commercial computer as the main control unit, with the company's professional testing software, can complete all the test parameters, working state control, data acquisition and processing analysis, the results show and print output;
4 the product performance is stable and reliable, high accuracy, testing software is powerful, easy to operate and easy to operate. 1, software specifications:
n Using windows work platform, the parameters set all points, the operation is simple;
n Using a single screen operation, do not need to screen switch;
n The software interface has three languages: Simplified Chinese, traditional Chinese and English;
n Self regulation mode test table;
n Test data can be directly called in the main screen;
n Data comparison of multiple curves at the same time;
n With a variety of measurement units, metric can switch;
n Automatic return function;
n With automatic correction function;
n Custom test method;
n Operation analysis of test data;
n With automatic magnification to achieve the most appropriate size of the graphics;
n It can be used to test the tensile, compressive, flexural, stripping, holding, holding pressure, fatigue and so on;
2, hardware specifications:
Model
PT-1176S
Capacity selection
2、5、10、20、50、100、200、500kg choose one
Measurement and control software
Professional test software Windows platform
Accuracy of measurement
Better than±0.5%
Force resolution
1/500，000
Effective range of measurement
0.5~100%F.S
Deformation display accuracy
Better than±0.5%
Test speed range
0.5～500mm/min，can be arbitrarily set
Test maximum stroke
Maximum 650mm (extended 1000mm, need to be customized), no fixture
Effective test space
Diameter 120mm range
Unit switch
A variety of measurement units, including international units, users can also customize the required units
Stop mode
Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure
Special function
Can be held in tension, holding pressure and fatigue test
Standard configuration
Standard fixture 1 payment, software and data line 1 sets, 1 sets of equipment power supply, CD 1 CD-ROM operating instructions, product certification 1 copies, 1 copies of product warranty card
Optional configuration
Business computer 1, color printer 1, all kinds of test fixture
Machine size
about 57×47×120cm(W×D×H)
Machine weight
about 70kg
Power
AC servo motor
Control mode
Double control
Power supply
1PH，AC220V，50Hz，10A or specified
